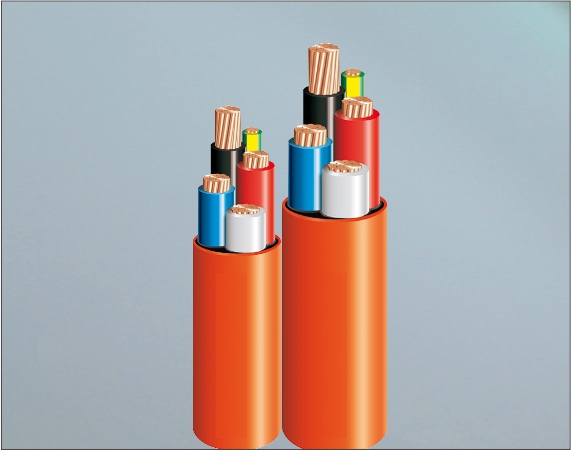

FIRE RESISTANT / PILOT CABLES

seprator

(Reference Standard - BSEN-50288-7, IEC 60502-1, IS-694, IEC-60331, IEC-60332)

Fire resistant cables are used for fire alarm and smoke detection systems, emergency lighting & evacuation systems. Pilot Cables are used for power distribution & transmission systems.

Operating temperature:  70°C & 90°C (depends upon selection of insulation compound).

Product Range: For Multicore 0.5 sq.mm. to 50 sq.mm. & up to 300 sq.mm. for single core

Voltage grade:  600/ 1000 V/ 1100V.

Conductor:  Annealed bare Copper / tinned Copper, solid or stranded Copper conductor (IEC -60228, IS-8130 Class 1, 2).

Insulation :  PVC/ PE/ XLPE.

Armouring:  Galvanized round and Flat strip conforming to IS/BS standard.

Sheathing:  PVC/ FR/ FRLS/ FROR/ FRRT/ LSF Inner & Outer sheath.

    gallery
    Element Screened

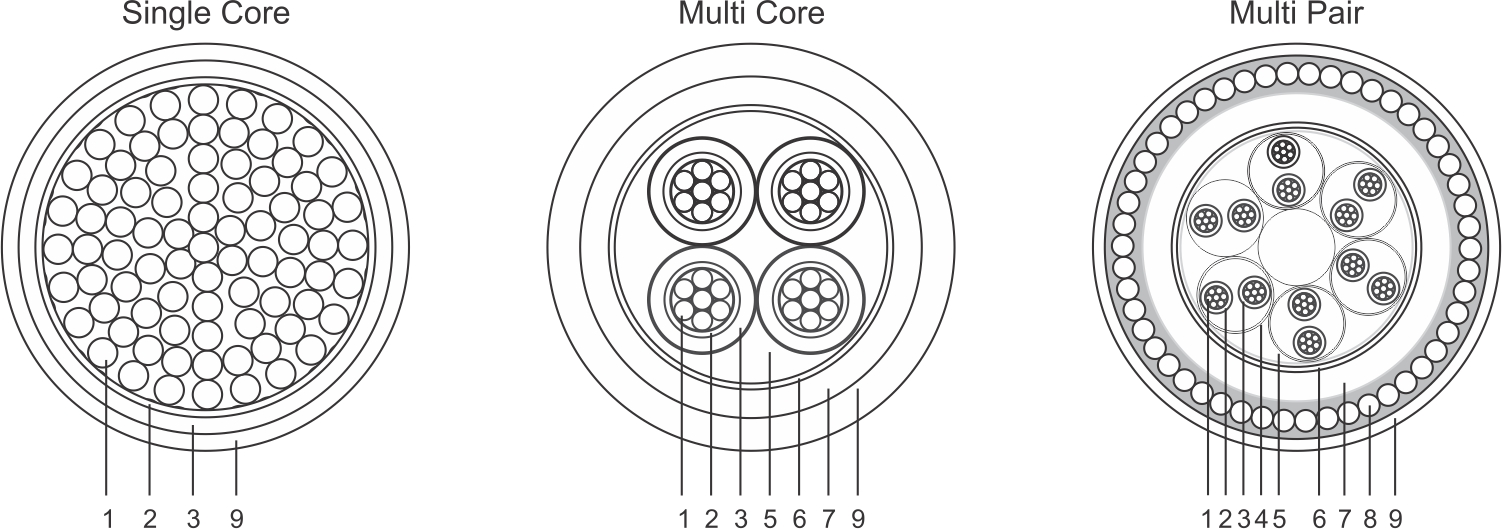

Construction Description
1 Conductor Stranded annealed copper
2 Fire Barrier Mica tape
3 Insulation Cross-linked polyethylene (XLPE)
4 Shield Aluminium foi with tinned copper drain wire
5 Filler* LSF filler or polyethylene split yarn
6 Binder Tape* Polyester tape
7 Bedding Low smoke halogen free (LSF) compound (Orange)
8 Armour*/# Galvanised steel wire (Copper wire for single core cable) Galvanised steel Flat Strip
9 Sheath Low smoke halogen free (LSF) compound (Orange)
