THERMOCOUPLE EXTENSION / COMPENSATING CABLES

seprator

(Reference Standard - IS-8784, ANSI-96.1, IEC-60584)

Thermocouple cables are used to sense process temperature and are connected to the controllers for indication & control.

Operating temperature:  70°C & 90°C(depends upon selection of Insulation compound).

Range:  20 AWG to16 AWG (KX / VX / KXA / JX / TX / NX etc.).

Voltage grade:  300/ 500V, 600V.

Insulation :  PVC/ PE/ XLPE.

Colour code Insulation / Outer sheath:  As per the relevant standard.

Screening:  Individual & Overall screening with Al-Mylar, Polyester tape and drain wire.

Armouring:  Galvanized round and Flat strip conforming to IS/ BS Standard.

Sheathing:  PVC/ FR/ FRLS/ FROR/ LSF Inner & Outer sheath.


  • gallery

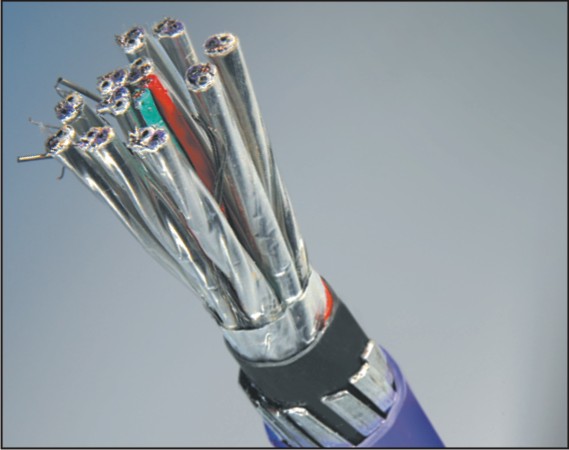

    Element Screened
  • gallery

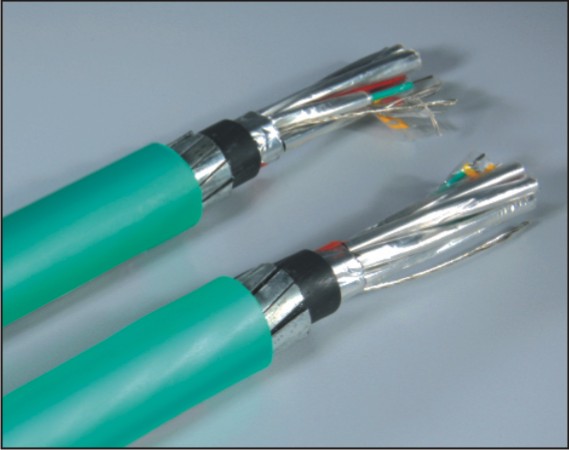

    Element + Overall Screened
  • gallery

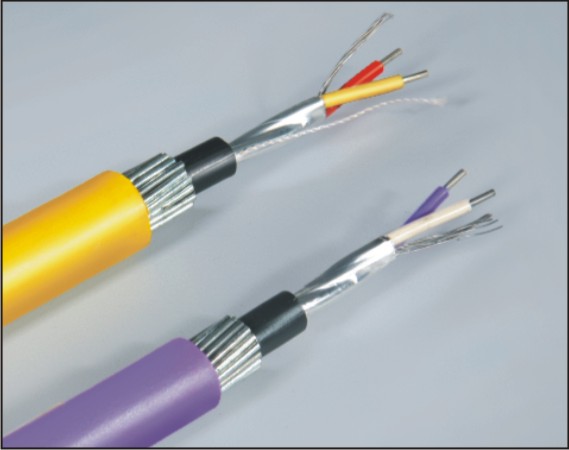

    Element + Overall Screened

Codes/Conductor
combinations
Characteristics of various
standards of Extension
and Compensating Cables

Colour code for Thermocouple Extension
and Compensating Cables

British Standard
BS 1843

American Standard
ANSI MC 96.1

Indian Standard
IS 8784

International
Electro Technical
Commission

Code Conductor
Combinations

IEC 584-3

+ VE Leg - VE Leg
KX

Nickel
Chromium

Nickel
Aluminium

+/-
2.5°C
+/-
2.2°C
+/-
2.2°C
+/-
2.5°C
VX

Copper

Copper-
Nickel

+/-
2.5°C
2.2°C - - +/-
2.5°C
TX

Copper

Copper-
Nickel

+/-
1.0°C
+/-
1.0°C
+/-
1.0°C
+/-
1.0°C
JX

IRON

Copper-
Nickel

+/-
2.5°C
+/-
2.2°C
+/-
2.2°C
+/-
2.5°C
EX

Nickel
Chromium

Copper-
Nickel

+/-
2.5°C
+/-
1.7°C
+/-
1.7°C
+/-
2.5°C
RX

Copper

Copper-
Alloy

+/-
2.5°C
+/-
1.5°C
+/-
1.5°C
+/-
2.5°C
SX

Copper

Copper-
Alloy
+/-
2.5°C
+/-
1.5°C
+/-
1.5°C
+/-
2.5°C
BX

Copper

Copper-
Alloy
- - +/-
0.5°C
+/-
0.5°C
- -
